Excavadoras2

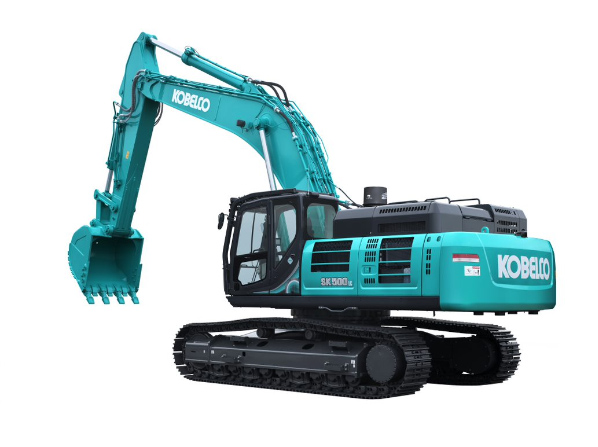

SK500LC

Overall Height (to top of boom) 12' 5" (3,800 mm) Overall Width 11' 11" (3,650 mm) Ground Clearance of Rear End 4' 1" (1,260 mm) Ground Clearance 20.07" (510 mm) Tail Swing Radius 12' 5" (3,800 mm) Distance From Center of Swing To Rear End 12' 5" (3,800 mm) Tumbler Distance 14' 5" (4,400 mm) Track Gauge 9' (2,750 mm) Shoe Width 23.62 (600 mm) Overall Width of Upperstructure 9' 9" (2,980 mm)

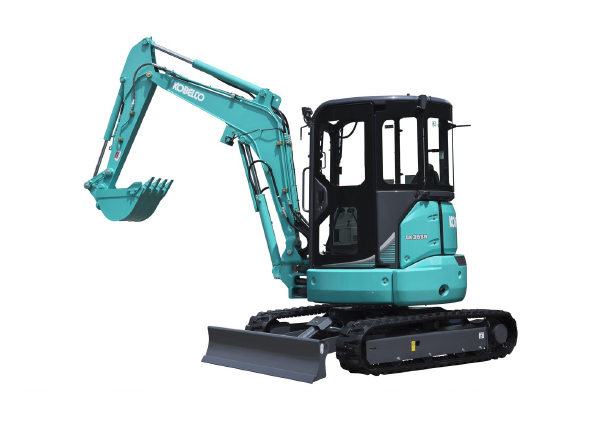

SK35

Engine Power - 18.1 kW (24.2 hp) Operating Weight - 3,770 kg (8,312 lbs) Overall Height (to top of boom) 8' 2" (2,510 mm) Overall Width 5' 6" (1,700 mm) Tail Swing Radius 2' 9" (850 mm) Distance From Center of Swing To Rear End 2' 9" (850 mm) Tumbler Distance 5' 6" (1,700 mm) Track Gauge 4' 7" (1,400 mm) Shoe Width 11.81 (300 mm) Overall Width of Upperstructure 5' (1,530 mm)

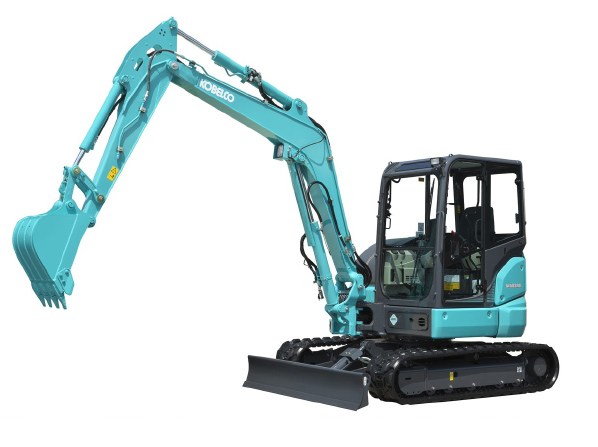

SK55

Engine Power - 29.6 kW (39.6 hp) Operating Weight - 5,020 kg (11,067 lbs) Overall Height (to top of boom) 8' 3" (2,530 mm) Overall Width 6' 5" (1,960 mm) Ground Clearance of Rear End 1' 11" (605 mm) Tail Swing Radius 3' 10" (1,170 mm) Distance From Center of Swing To Rear End 3' 10" (1,170 mm) Tumbler Distance 6' 6" (2,000 mm) Track Gauge 5' 1" (1,560 mm) Shoe Width 15.74 (400 mm) Overall Width of Upperstructure 6' 4" (1,940 mm)

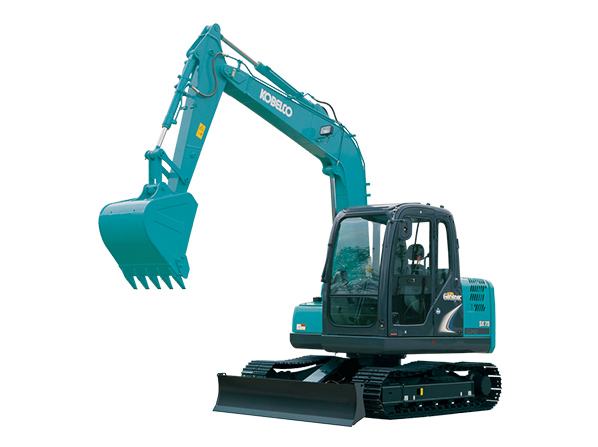

SK75

Engine Power - 42 kW (56.3 hp) Operating Weight - 7,290 kg (16,072 lbs) Overall Height (to top of boom) 8' 11" (2,730 mm) Overall Width 7' 7" (2,320 mm) Ground Clearance of Rear End 2' 5" (745 mm) Ground Clearance 14.17" (360 mm) Tail Swing Radius 5' 8" (1,750 mm) Distance From Center of Swing To Rear End 5' 8" (1,750 mm) Tumbler Distance 7' 3" (2,210 mm) Track Gauge 6' 1" (1,870 mm) Shoe Width 17.71 (450 mm)
